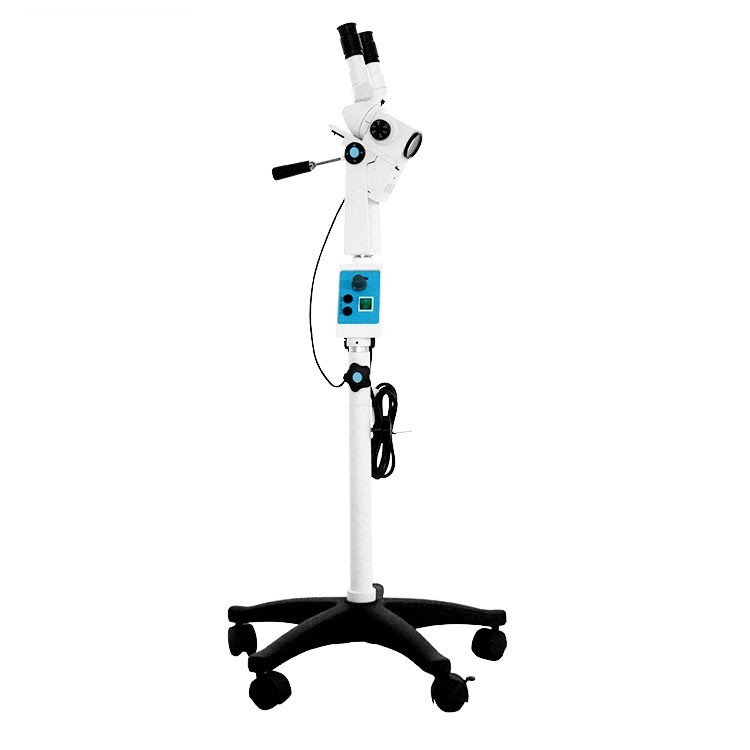

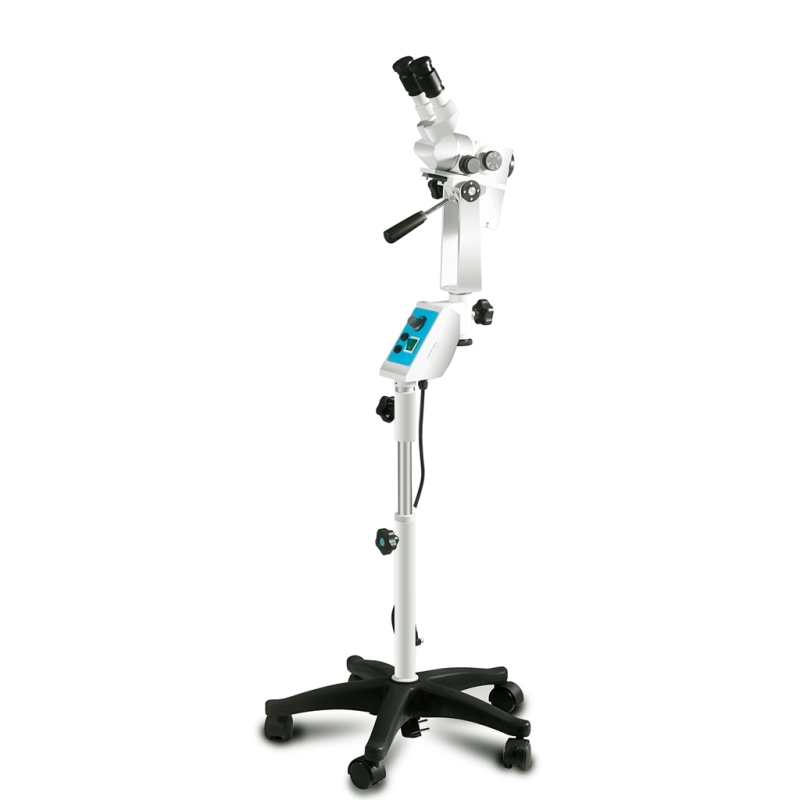

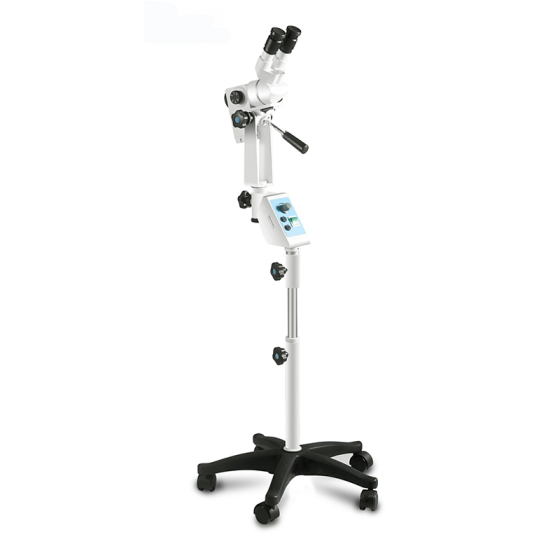

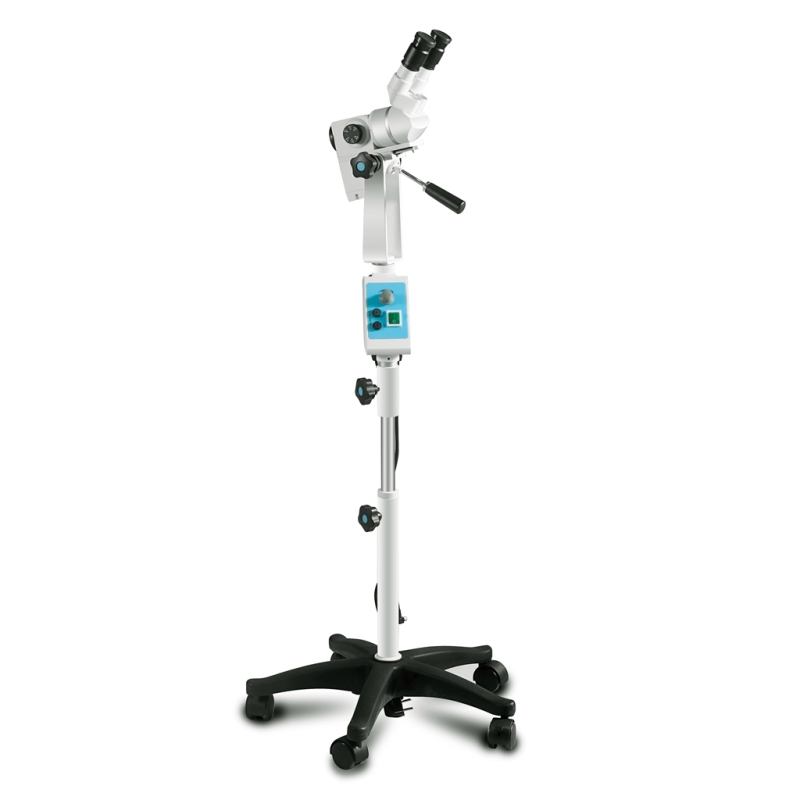

Professional Binocular Colposcopy Portable Colposcope Machine KN-2200BI
- ：Gynecological Including vaginal and uterine diagnosis
- ：CE、FDA
- ：LED light
- ：available
KERNEL optical colposcope imaging system.
Model: KN2200BI,
3D visual effects, 5 steps magnification,up to 30 optical magnification times
CCD part：1/3 inch sony CMOS, 2.1 million effective pixels
Image size: 1920*1080, horizontal resolution: 1080P/60
Professional one key installation multi-languages software
Overview
| Optical System Ultra-long depth of field, large field of view, super-stereoscopic, realistic color reduction, unique light path design, provide true 3D visual effects. |

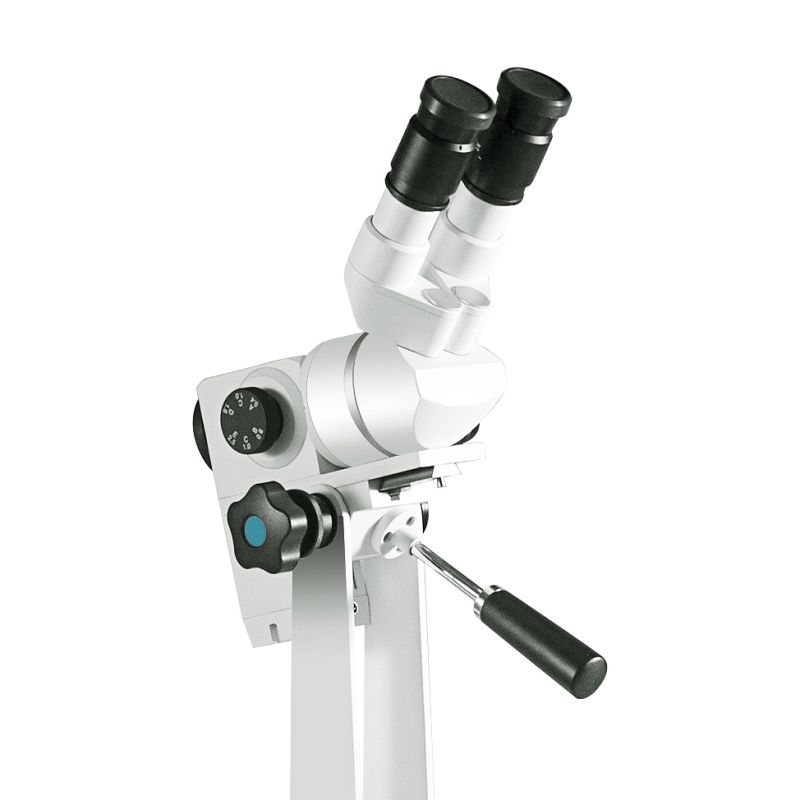

Binocular eyepieces High-eye point Wide-field eyepiece, 45° and 0° eyepiece optional. |  |
| Five- step Zoom Up to 30 times of optical amplification, with high- quality amplification effect can be clearly observed a variety of small pathological cells, can be used to accurately locate biopsy of live lesions. |

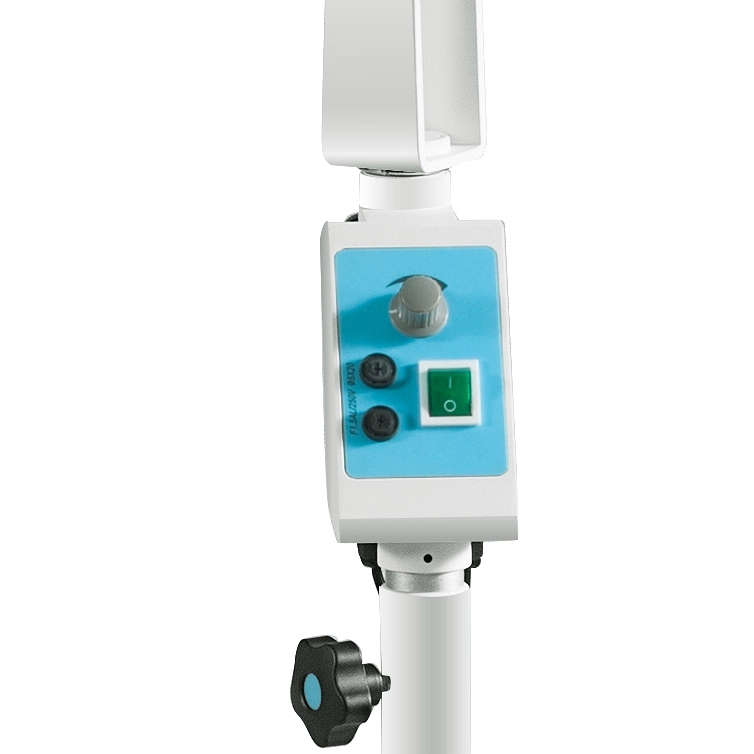

Halogen or LED light source Energy-saving LED light source, with high brightness. |
|
Function
1. Dark-light imaging technology: Clearly observe the color images in the examination room with low light.
2. Light spot subtraction imaging technology: observation of body fluids more tissue, reduce the reflection phenomenon caused by the light spot.
3. LED light imaging: high apparent finger LED with the unique imaging technology to restore the original color and detail level of the tissue more realistic
4. Light filter mode: physical lens green light mode, enhance the effect of tiny blood vessel identification, highlighting the details of blood vessels.
5. Acetic acid reaction and iodine staining test timing function, freeze mode, controlled by software.
Specification
KERNEL Optical Digital Colposcope Imaging System
Model:KN-2200B1
Eyepiece | 12.5x, Optional: 20x |
Observation Angel | 45°eyepiece: 0-135° |
0°eyepiece: -45-90° | |
Double Eyepiece Focal length | 45°eyepiece: 125mm |
0°eyepiece: 160mm | |
Focusing | Fine tuning, manual |
Eyepiece Adjustment Range | 55 ~ 75mm |
Objective Focal length | 300mm,optional:250mm |
Working distance | 300 eyepiece: 300mm |
250 objective: 250mm | |
Horizontal resolution | 1080P |
Software
A multi-functional management system integrating image acquisition, image processing, clinical diagnosis, report editing, and query statistics.
U disk automatic installation, multi-user operation mode, easy to use for different doctors.
Support WIN7/8/10 operating systems above with Chinese, English, Spanish, Russian, Vietnamese, Turkish etc.

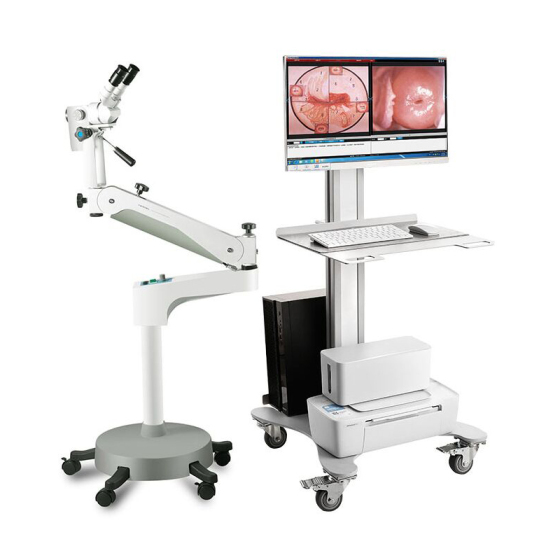

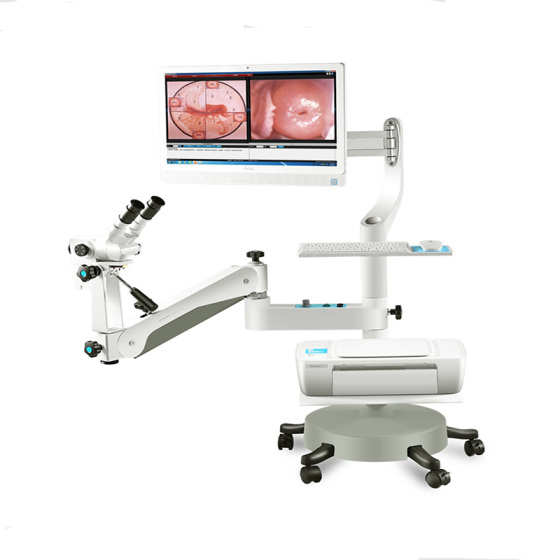

Photoelectric integrated Colposcopy is a combination of microscope optical system and digital colposcopy imaging system.
It is suitable for the gynecological examination of vulva, vagina, cervix and other parts in clinic.
