Optical Video Colposcope for gynecology examination imaging system KN-2200B
- ：Gynecological Including vaginal and uterine diagnosis
- ：CE、FDA
- ：LED light
- ：available

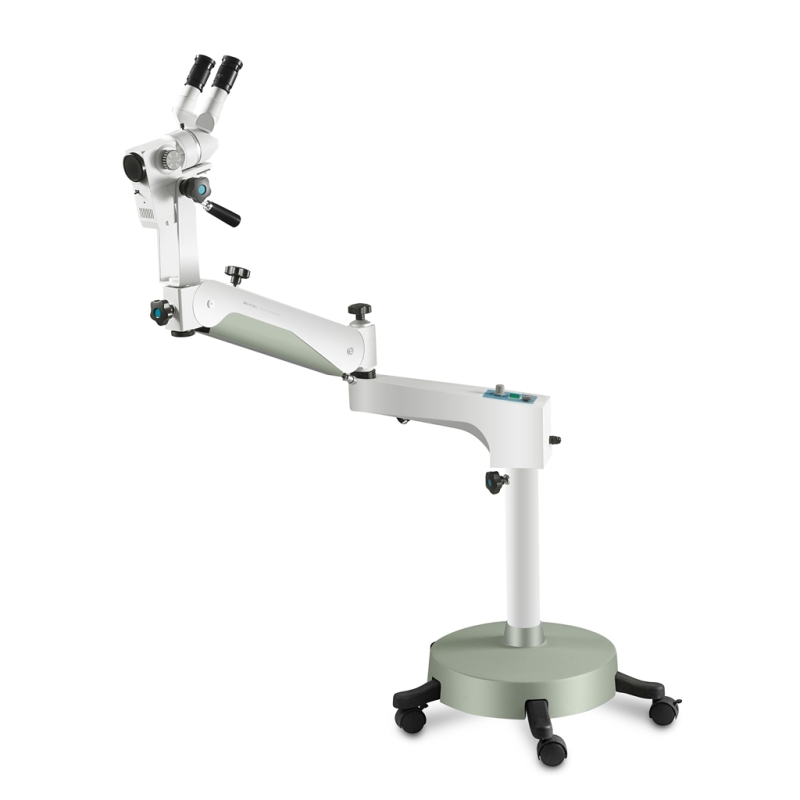

KERNEL optical colposcope imaging system.
Model: KN2200B, video colposcope.
1. 3D visual effects, 5 steps magnification,up to 30 optical magnification times
2. CCD part：1/3 inch sony CMOS, 2.1 million effective pixels
3. Image size: 1920*1080, horizontal resolution: 1080P/60
4. Professional one key installation multi-languages software
Overview
| Optical System Ultra-long depth of field, large field of view, super- stereoscopic, realistic color reduction, unique light path design, provide true 3D visual Effects. |

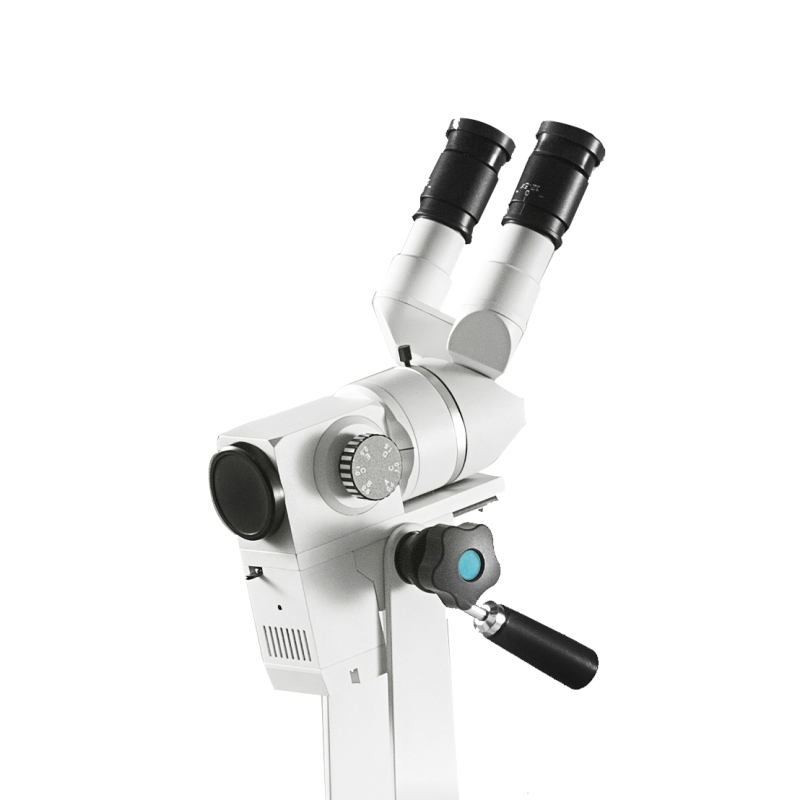

Binocular eyepieces High-eye point, Wide-field eyepiece, 45° and 0° eyepiece options, suitable for different heights of inspection beds. |  |
| Five- step Zoom Up to 30 times of optical amplification, with high-quality amplification effect can be clearly observed a variety of small pathological cells, can be used to accurately locate biopsy of live lesions. |

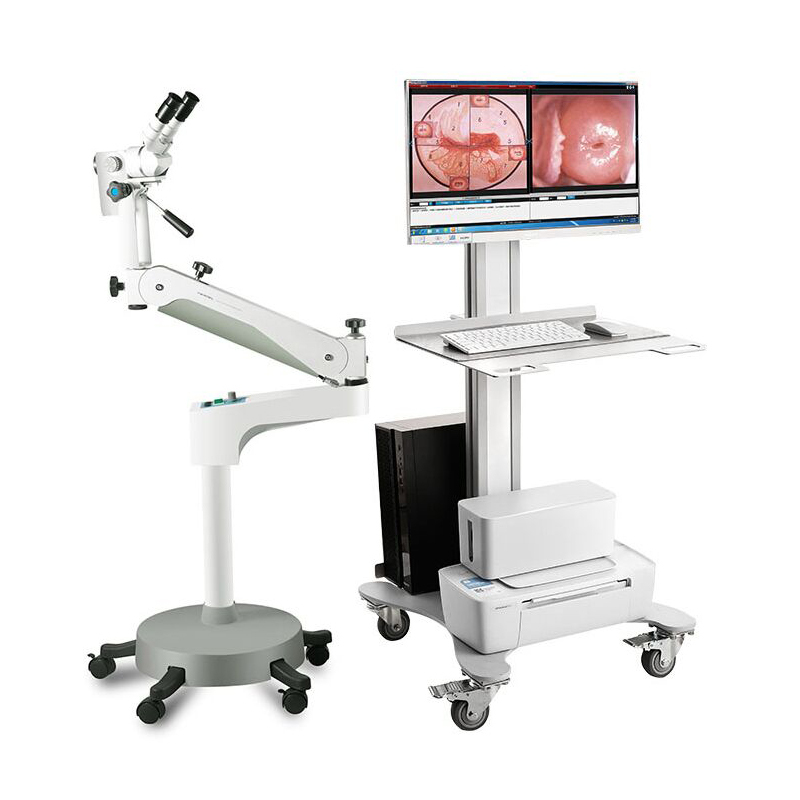

ABS integrated Trolley The overall streamlined design of the trolley, flexible operation, reasonable layout, small footprint, ergonomic. Monitor can be adjusted up and down, more flexible viewing angles. |
|
Features
1. Combines the advantages of microscope optical system and electronic colposcope imaging system in one.
2. Super large field of view, realistic color reproduction, unique optical path design, provides true 3D visual effect for tiny lesions.
3. Two options of 45 degree and 0 degree eyepieces.
4. Up to 30 times optical magnification.
5. Overall humanized design, all joints horizontal steering are using damping bearing technology, lifting support arm can be easily adjusted for users of different heights.
OPTICAL COLPOSCOPY SPECIFICATIONS:
KERNEL Optical Digital Video Colposcope Imaging System
Model:KN-2200B
Eyepiece | 12.5x, Optional: 20x |
Observation Angel | 45°eyepiece: 0-135° |
0°eyepiece: -45-90° | |
Double Eyepiece Focal length | 45°eyepiece: 125mm |
0°eyepiece: 160mm | |
Focusing | Fine tuning, manual |
Eyepiece Adjustment Range | 55 ~ 75mm |
Objective Focal length | 300mm,optional:250mm |
Working distance | 300 eyepiece: 300mm |
250 objective: 250mm | |
Horizontal resolution | 1080P |
What is photoelectric integrated colposcope?
Optoelectronic integrated colposcope is a new generation of advanced equipment for the clinical diagnosis of cervical lesions, which integrates the advantages of microscope optical system and electronic colposcope imaging system.The excellent stereoscopic microscopic optical system provides the clinician with perfect stereoscopic vision in high definition under super long depth of field and super large field of vision.It is also widely used in gynecological examination and treatment, and the observation of cell tissue changes in the early stage of cervical pathology, to help clinicians more accurately evaluate the clinical evaluation of some border areas that cannot be observed by the naked eye.
Photoelectric integrated Colposcopy is a combination of microscope optical system and digital colposcopy imaging system.
It is suitable for the gynecological examination of vulva, vagina, cervix and other parts in clinic.
