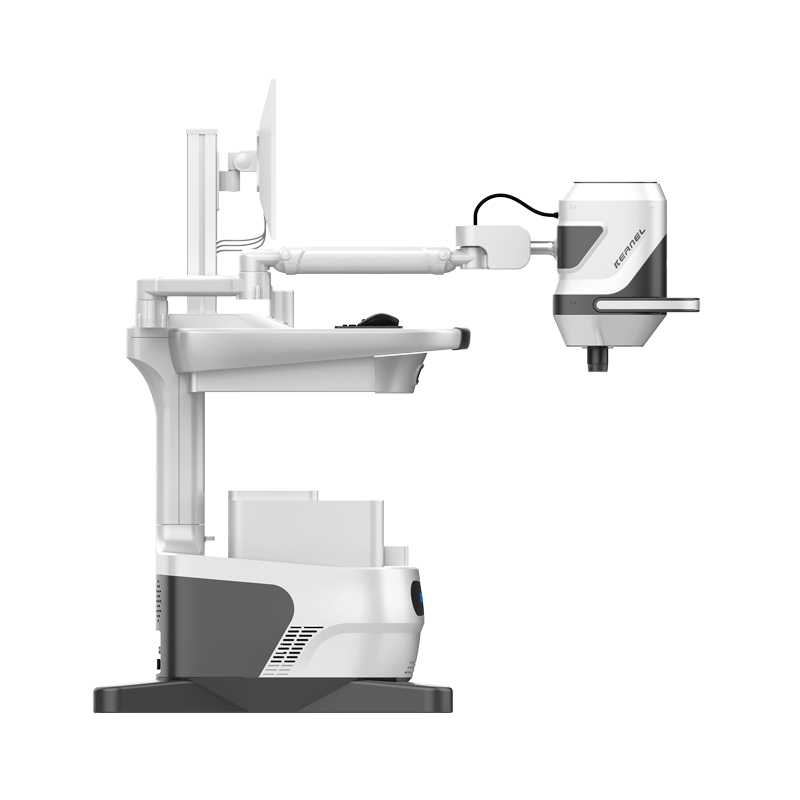

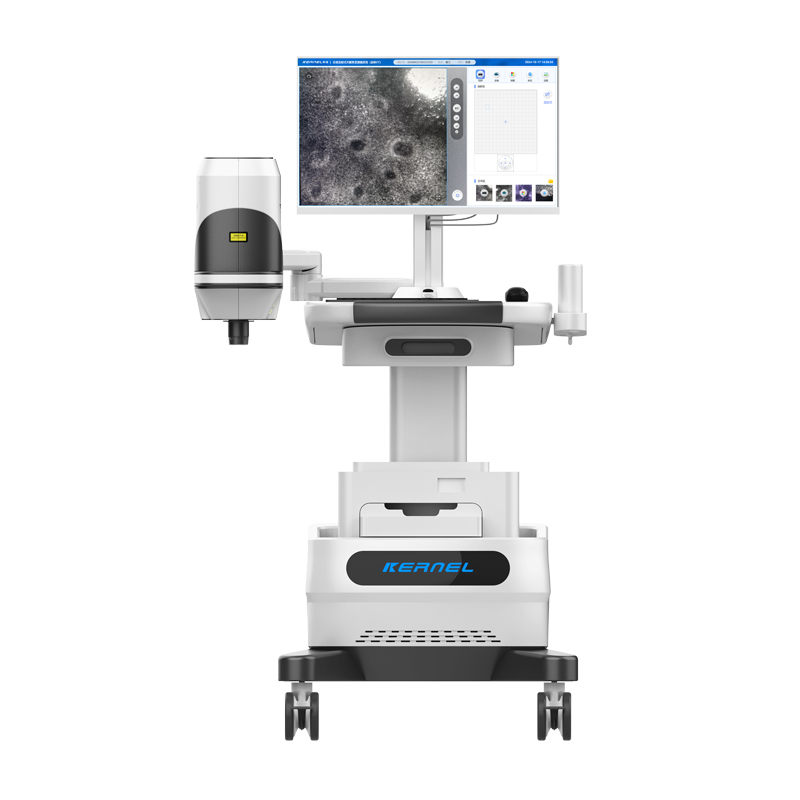

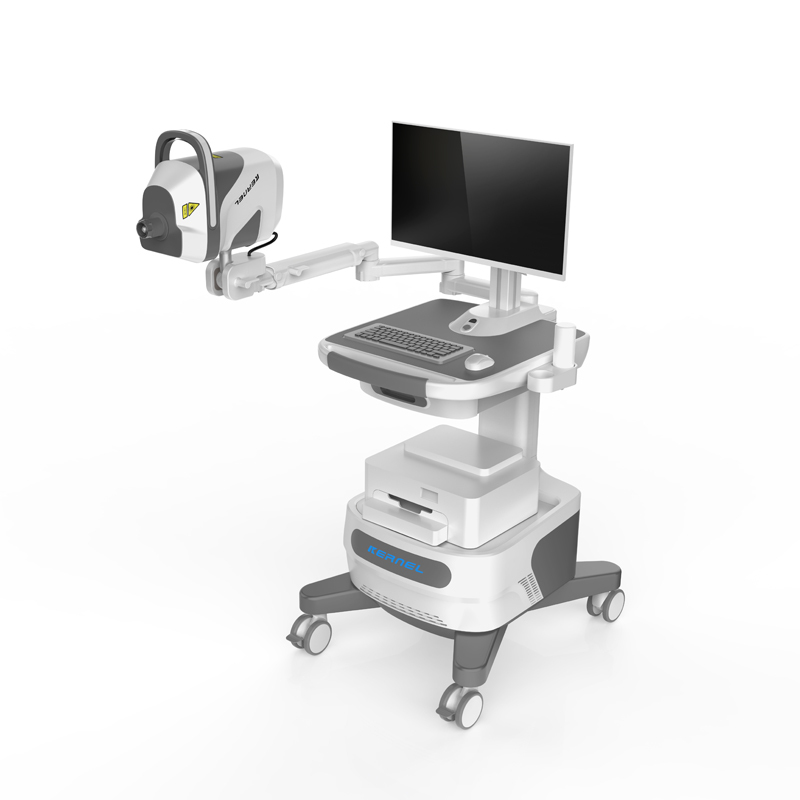

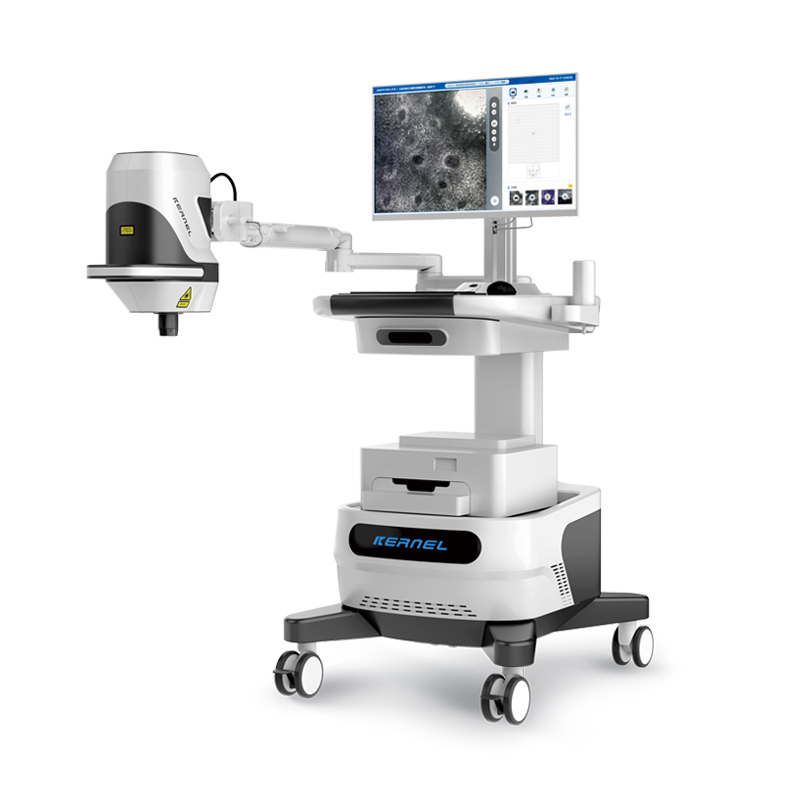

Reflectance Confocal Microscopy (RCM) System RCM-9503
1.Non-invasive, Real-time Imaging
2.Ultra-high Resolution
3.Confocal Optical Technology
4.Cross-sectional, Layer-by-layer Scanning
5.Contrast Based on Refractive Index
6.Improved Diagnostic Accuracy
- Early detection of melanoma and non-melanoma skin cancers,Monitoring of tumor margins,Evaluation of inflammatory and autoimmune skin disorders
- Low level laser
- Available
Our Reflectance Confocal Microscopy (RCM) system delivers high-resolution, real-time, in vivo imaging of the skin with cellular-level detail—without the need for biopsy. Designed for dermatologists and skin researchers, it allows accurate diagnosis, monitoring, and evaluation of various skin conditions, including melanoma, basal cell carcinoma, and inflammatory disorders.
Powered by advanced confocal optics, the system offers:
Cellular resolution imaging down to the superficial dermis
Immediate visualization of suspicious lesions
User-friendly interface for rapid scanning and analysis
Compact and ergonomic design for clinical use
Ideal for early skin cancer detection and cosmetic dermatology
Ultra-precise and high-resolution Featuring ultra-precise optics and high resolution imaging, the RCM system ensures diagnostic confidence. |  |
|
Software Embedded Algorithm Following diagnostic imaging, the RCM system can generate comprehensive pathological reports, which can be printed instantly via the dedicated printer. |
Non-invasive, Real-time Imaging Enables cellular-level visualization of skin lesions without the need for biopsy, minimizing patient discomfort and reducing unnecessary procedures. |  |
| Optical lateral resolution | <1.25µm |
| Optical axial resolution | <5.0µm |
| Imaging depth | ≥300µm |
| Scanning field of view | 500µm*500µm |
| Laser wavelength | 830nm |
| Image stitching | 8.5*8.5mm |
| Display image resolution | 1024*1024 |
| Scanning frame rate | ≥15fps |
