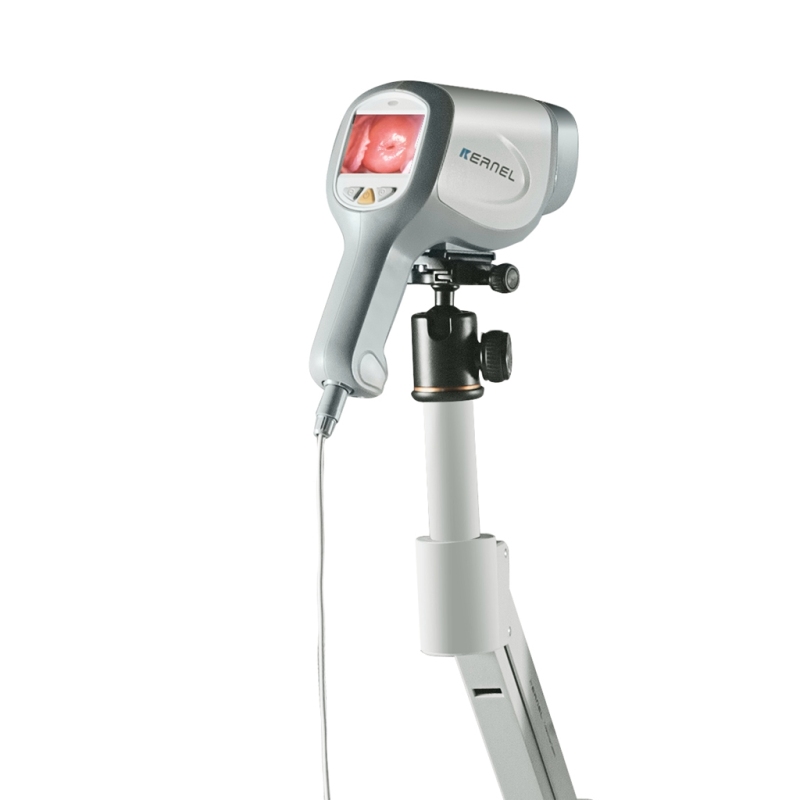

Digital Video Colposcope Imaging System KN-2200I
1. Digital video colposcope imaging system Kernel KN-2200I.
2. 1/2.8'' Sony CCD, 2.1 million effective pixels, 1080P Horizontal Resolution.
3. High color rendering index Led light source.
4. 4 Imaging modes: Colorless imaging, Natural light imaging, LED light imaging, Filter mode.
5. Scope of application: clinical diagnosis of vulva, vagina, cervix and other parts.
- Gynecological Including vaginal and uterine diagnosis
- CE，FDA
- LED light
- available
Overview

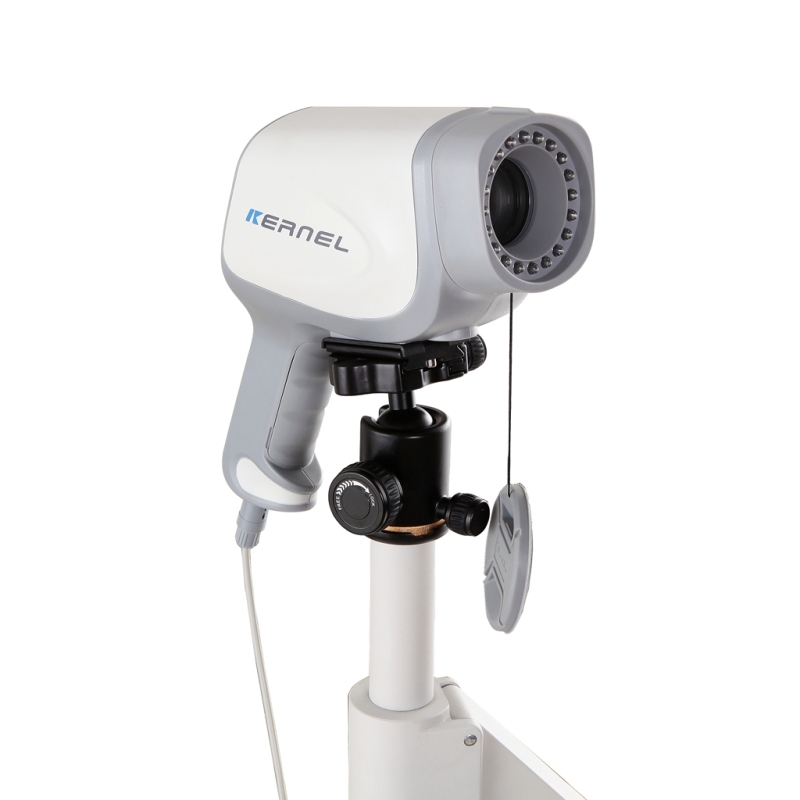

| Photographic camera Featuring a Sony color HD CCD with 2.1 million effective pixels and advanced spot subtraction technology to minimize light spots caused by reflections. |
Handheld Remote The user-friendly operation panel enables zooming, focusing, switching imaging modes, marking images, and adjusting brightness, all with a single hand. |
|

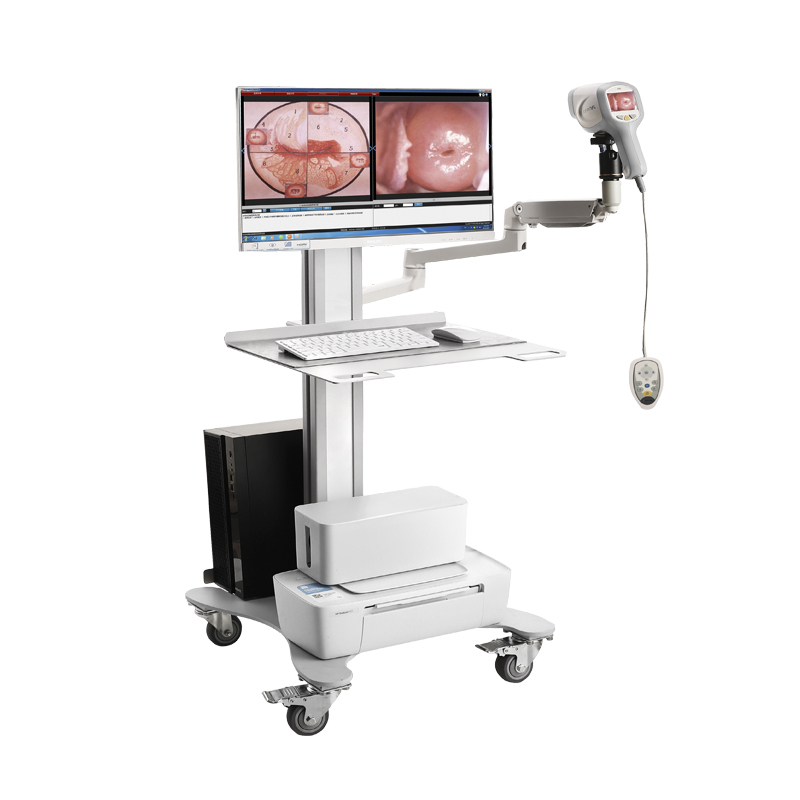

| Trolley Constructed from all-metal materials with an integrated design, making it easier to move and suitable for any type of inspection room. |
Software Equipped with specialized software for marking, zooming in and out, and acetic acid reaction countdown. The professional patient case database supports up to 175 categories, allowing for easy addition of case images for clinical comparison. |
|
Features
1. The new generation of HD colposcope adopts 1/2.8" Sony CCD with 20x optical zoom and 2.1 million effective pixels.
2. With rear view screen display function with internal battery, free from the limitation of wire and workstation.
3. Fully damped head, 360-degree all-round adjustment, can automatically hover at any angle.
4. Push cart with all-metal, integrated design, strong integrity, more convenient to move.
5. Flexible positioning of the cantilever bracket, can adjust the position and angle of the lens at will, providing doctors with a dead-angle-free observation field of view.
6. Advanced light spot reduction imaging technology, reducing the reflection phenomenon caused by the light spot.
7. Four imaging modes, highlighting important lesions and blood vessels, epithelial tissue, and truly restore the original color and detail level of the tissue.
Specification
KERNEL Digital video Colposcope Imaging System
Model:KN-2200I
Application: clinical diagnosis of vulva, vagina, cervix and early cervix cancer screening
| Camera | 1/2.8 inch Sony CCD |
| Effective Pixels | 2,100,000 px |
| Zoom | System: 320x, optical: 20x, digital: 16x |
| Focus Mode | Automatic or manual |
| Depth of field | 5.3mm～96.3mm |
| Working Distance | 200~400mm |
| Field of View | Ф23～420mm |
| Color Saturation | 95% |
Features of Software of KERNEL Colposcope
1. Kernel's colposcope system support Windows 7, Windows 8 and Windows 10 operating system. One-key installation
2. Multiple languages available: English , Turkish , Vietnamese, Spainish, Russian, Italian.
3. Footswitch and software two kinds of acquisition, Video recording mode, the image can be dynamic,static,full-screen capture.
4. Special software, can be used for marking, zoom in and out, acetic acid reaction countdown function.
5. Professinal patient case datebase(up to 175 kinds),and the patient case picture can be added into the datebse for easy clinical comparasion.
6. Built-in 19 case report templates for easy editing and printing. PDF format can be generated
Colposcopy instruments
Colposcope digital imaging syste
About colposcope system
The digital video imaging colposcope system integrates advanced digital imaging technology with colposcopy, enabling detailed clinical gynecological examinations of the vulva, vagina, cervix, and other areas. It magnifies images to reveal even the smallest lesions that cannot be seen with the naked eye. This magnification allows doctors to observe fine details of lesions on the uterine and genital surfaces, improving the accuracy of diagnoses for cervical and genital conditions. The system also supports image collection, processing, clinical diagnosis, report generation, and data querying via computer, optimizing colposcope usage and meeting the evolving demands of medical imaging digitization.
Combining digital imaging with colposcopy technology, the digital video imaging colposcope system is ideal for gynecological exams of the vulva, vagina, cervix, and more. It enlarges images, enabling the detection of small lesions invisible to the naked eye. By magnifying these details on a screen, doctors can accurately assess lesions on the uterine and genital epithelium, supporting early disease diagnosis and improving cure rates. Additionally, the system allows for image collection, processing, diagnosis, and report generation, helping to maximize the colposcope's capabilities and meet the future needs of digital medical imaging.
The digital video imaging colposcope system merges digital imaging and colposcopy, designed for clinical gynecological examinations of the vulva, vagina, cervix, and other regions. It enhances images to detect minute lesions that would otherwise go unnoticed. By magnifying these lesions, doctors can clearly visualize the uterine and genital epithelium details, improving diagnostic accuracy for cervical and genital diseases. The system also facilitates image capture, processing, diagnosis, report creation, and data retrieval, maximizing the utility of the colposcope while aligning with the future trends in digital medical imaging.
